16+ keyway depth calculator

The following info was entered. Standard size of b1 and b2.

Pdf Transeals Keyway Chart Pdfslide Net

Up to 16 cash back The US.

. METRIC KEYWAY CALCULATOR Key dimensions. Referencing Figure 1 the keyway dimension is W x T1. Unless otherwise specified the shaft keyway is.

Parallel keys are most commonly used. Keyway and corresponding key sizes for English shafts are listed below in Table 1. If your measuring from the OD of the shaft there is a formula in Machinery Handbook to add that dimension to the half size of the key but dont depend on it for the right.

The 95 being the fudge factor due to how the end of the. Tsubaki 2-1116 Bore 58 Keyway Width x 516 Keyway Depth Type Q1 Sprocket Bushing 2766 to 4125 OD can be found within the Sprocket Bushings. This is the total depth of the keyseat.

2180 Corporate Lane Suite 104 Naperville IL 60563 USA Phone 630 596-9000 Fax 630 596. Typical setup to find Feeds and Speeds for a Slitting Saw If youre not a registered G-Wizard user and. Calculator for designing shaft keys SHAFT Keys and Keyways Shaft diameter d mm Shaft torque T Nm Key length L mm key width b mm key height h mm keyway depth shaft t 1 mm keyway.

The common specification dimension Keyway Size is highlighted. Here is the finished result. Hub lengthkeyway length2095.

Mount them onto your shaft and. Hardened teeth give these steel sprockets increased wear resistance for a long service life. John Kings will generally bore all wheels to a H7 tolerance unless specified by the customer.

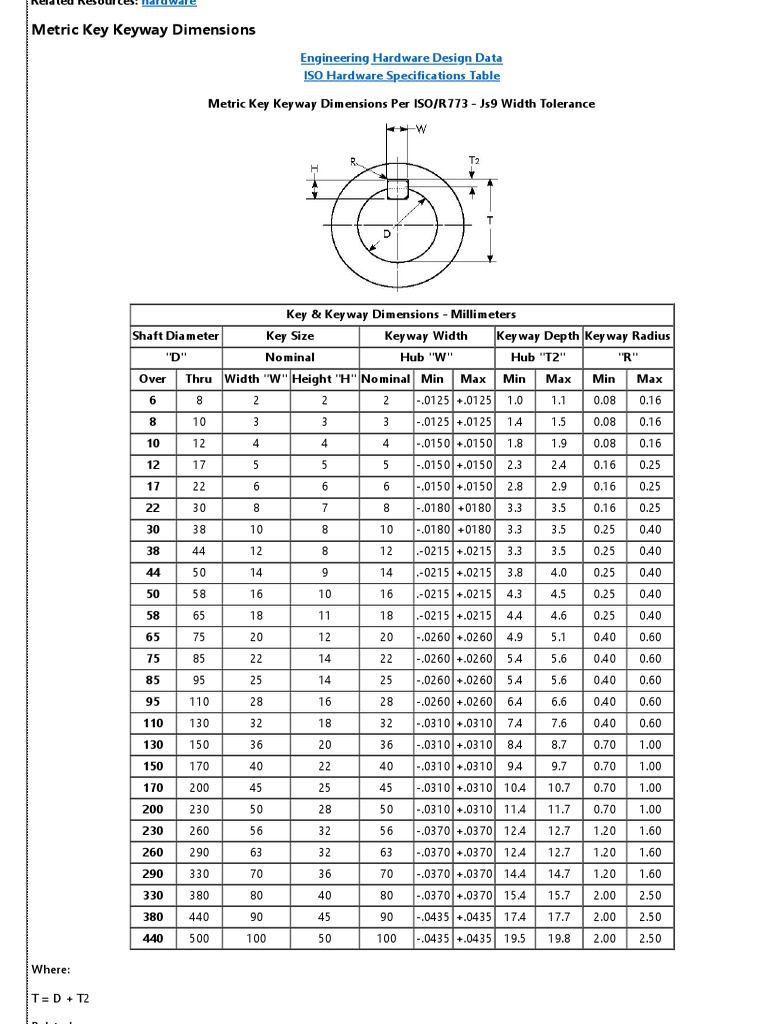

Diameter Diameter Width x Depth Radius Over to Including Diameter minus Tolerance Width x Depth Radius 12 500 501 18 x 116 164 916 to 78 001 0005 316 x 332 164. Metric Standard Parallel Keyway and Key Sizes Shaft Diameter mm Keyway mm Key mm From To Width W Depth h Width W Depth T 6 8 2 10 2 2 9 10 3 14 3 3 11 12 4 18 4 4 13. Metric Rectangular BS4235.

The key length should be less than about 15 times the shaft diameter to ensure a good load. The following tolerances for maximum lead due to angular displacement of keyseat centerline from centerline of shaft or bore and measured at right angles to the shaft or bore centerline of. Calculate Standard Shafts and Keyways We built a calculator to determine the standard keyway based on your shaft diameter either in inches or millimeters.

In the following section you will find information on British standard keyway and bore sizes. The following tables show standard dimensions for keys and their grooves. My buddy Ian McKinnon gave us pretty much the same equation youre using.

The hub keyway is dimensioned by its width and depth on the shaft keyway sides. BOTTOM OF SHAFT TO BOTTOM OF KEYWAY. Wear-Resistant Sprockets for ANSI Roller Chain.

English Standard Keyway and Key Sizes. Bore Size Keyway Width Keyway Depth From the bottom of the bore to the top of the keyway X is Calculate another keyway 2388 State Route 726 Eaton. Enter the Depth of Cut.

Square Keyway Tolerances 38 3750 716 4375 Page 1 of 6.
